Qolsys Dual Band WiFi Mesh Access Point

Qolsys Dual Band WiFi Mesh Access Point

by Qolsys
SKU QW8200-840
$169.00 - $169.00
$169.00
$169.00 - $169.00
$169.00

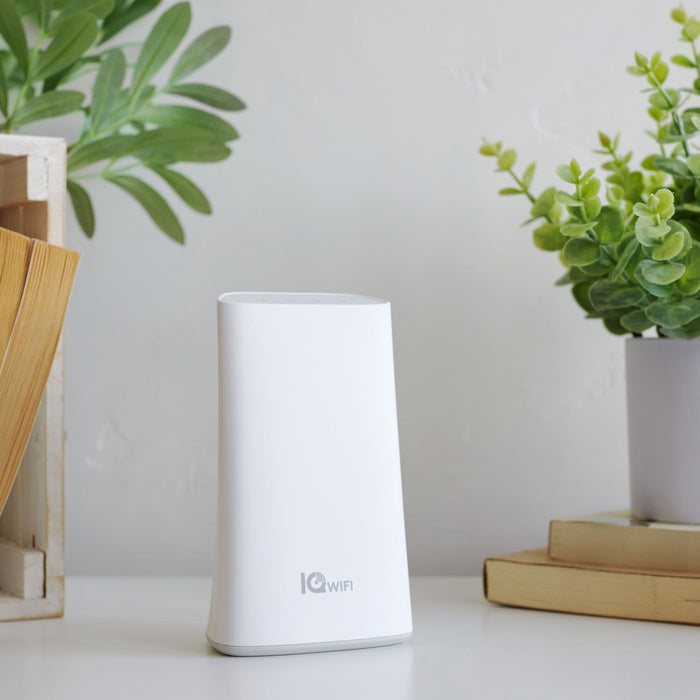

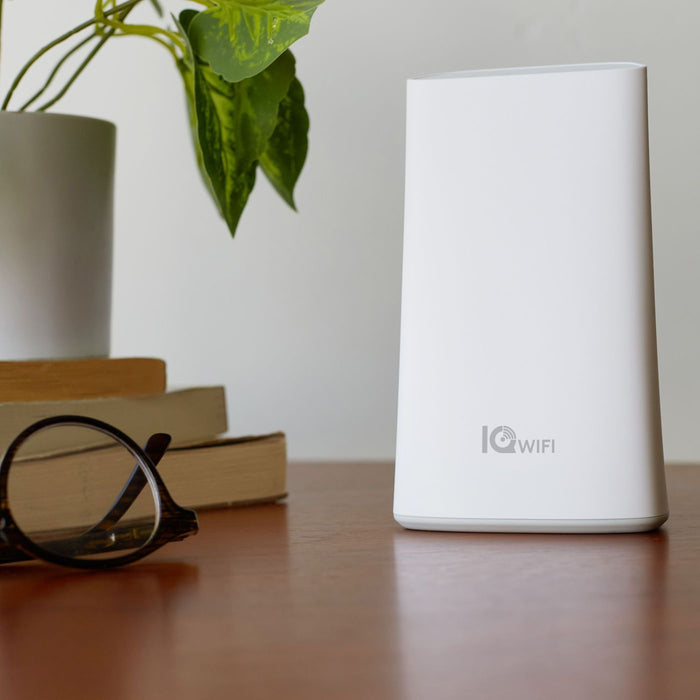

The Qolsys QW8200-840 IQ WiFi is a mesh router system that provides seamless WiFi coverage to every corner of any room up to 130 feet away - for use with Qolsys systems.

The QW8200-840 router is used to link Qolsys-compatible WiFi devices within a house or business to the Qolsys IQ Panel 2 Plus security system, such as Alarm.com security cameras, Alarm.com video doorbells, and the Qolsys touchscreen keypad.

Product Features:

  • WiFi mesh network prioritizes ethernet backhaul (wired connection) then shared wireless backhaul (if not wired connection is available)
  • Automatic Handoff and Self Healing
  • Easy Installation
  • Expand current Wi-Fi network or create a parallel network
  • Web interface or IQ Panel configurable
  • WiFi version 5
  • WPS Button - Physical button on the side of the device
  • Guest Network - 2.4GHz/5GHz
  • Great Coverage - Up to 1,500 square feet per point
  • WPA2 Security Encryption
  • DHCP - Server/Client

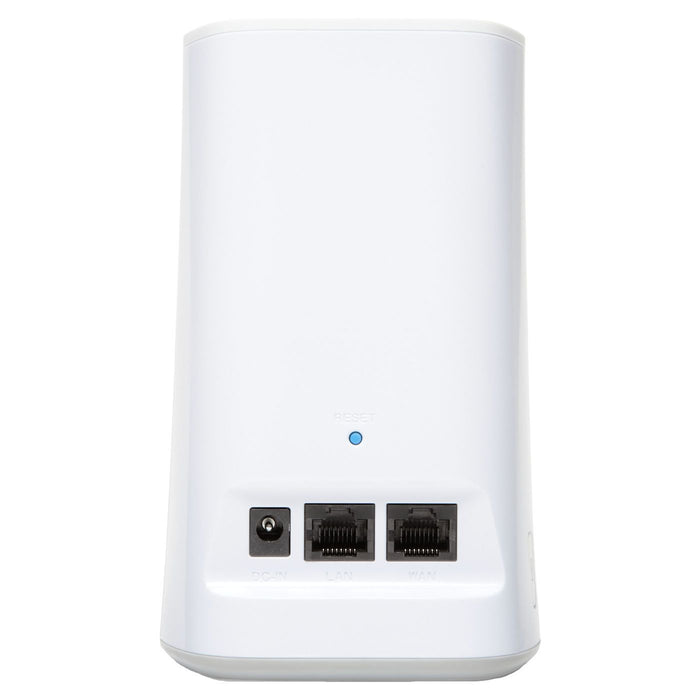

  • Ethernet - 1x LAN / 1x WAN Gigabit Ethernet Ports
  • Dual Band (2.4 GHz & 5 GHz)
  • Assign devices to a specific node
  • Add up to 8 nodes (1 controller & 7 agents)
    		•

    Product Specifications:

    • Dimensions: 150mm x 89 mm x 57.2 mm
    • Weight: 172g
    • Usage: For Indoor use only
    • Compliance: FCC
    • Process and Memory: SSoC: MT7621DA (MIPS1004Kc dual-core 880MHz, SPI NOR Flash 64MB)
    • Memory: 128MB DDR3 embedded
    • Operating Temperature: 0°C to 40°C (32°F to 104°F)
    • Relative Humidity: 10 to 90% RH (non-condensing)
    • Operating Distance: Up to 130 ft
    • Frequency Type: Wireless Band Dual IEEE 802.11 b/g/n 2.4GHz, IEEE 802.11 a/n/ac 5GHz
    • Wired Type: LAN and WAN Gigabit Ethernet Ports
    • LED Indicator: 2 color LED (Green and Red)
    • Antennas: 4 Internal WiFi antennas
    • Power Supply Input: 100-240VAC, 50-60Hz, 0.3A Max
    • Power Supply Output: 12 VDC, 1A

    Product Compatibility:

    • QW9104-840
    • ADC-VDB101
    • ADC-VDB102
    • ADC-VDB105
    • ADC-VDB105X
    • ADC-VDB106
    • ADC-VDB106X
    • ADC-VDB770
    • ADC-VDB770-BZ
    • ADC-VDB770-S
    • ADC-V515
    • ADC-V523
    • ADC-V523X
    • ADC-V622-WELL
    • ADC-V723
    • ADC-V723X
    • ADC-V724X
    • ADC-V821
